Plastic Closure Dripping MachineH.S.Code: 8477209000
|
|
 Plastic

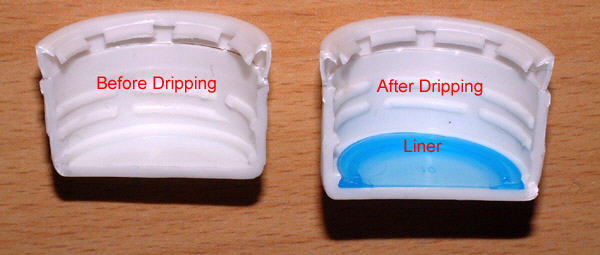

dripping machine is used to produce sealing liner for closure
(plastic closures only),
thus the closure can seal well and prevent it from air leakage
or liquid leakage, even for carbonated soft drink.

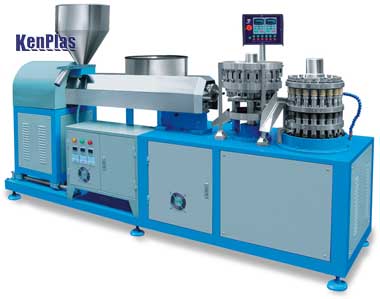

The patented newly developed model DS-2006 plastic dripping
machine is improved based on model DS-2000 (version 2000, 3rd
generation). It is integrated with functions such as closure
sorting, closure feeding, dripping, temperature control, speed
regulating. Thus it works fully automatically to save the labor
and increase the output. It is ideal for closure manufacturer.
|
 |
|
Technical Specification |
|
Model |
|
Output: |
<= 18,000 pcs/hour (for dia.28mm cap, 24-head)
<=12,000 pcs/hour (for dia.38mm cap, 16-head) |
|
Bottle Pressure to Lock: |
<= 6 Bar |
|
Working Air: |
0.4~0.5m3, 4
Bar |
|
Motor Power: |
380V/3p (or OEM), 3 Kw |
|
Extruder Power: |
3
Kw + 4 Kw (Heating) |
|
Closure Sorter: |
60
W (single phase) |
|
Operator Required: |
2
persons / set |
|
Raw Material: |
TPE
(for 28mm neck cap, 0.3~0.4g/pc consumed) |
|
Dimension |
Overall: |
355x125x155 cm |
|
Extruder (packing): |
180x63x130 cm |
|
Dripping Unit (packing): |
130x98x160 cm |
|
Closure Sorter (packing): |
90x90x90 cm |
|
|
Specification Reference of TPE T-BLEND TPE,
No.6594N-PE
| Heatproof Intensity (Tb) |
56.5 Kb/cm2 |
ASTMD412 |
Draught Speed:
500mm/min. |
| Elongation (Eb) |
527% |
| M300 |
39 Kb/cm2 |
| Hardness (Hs) |
65 |
ASTMD2240 |
A Type |
| Tear Intensity |
33 Kg/cm |
ASTMD624 |
C Die |
| Akron Abrasion |
0.66 cc |
B.S.903 |
150
21b" 2000rev |
| M.F.I. |
0.5 g/10min. |
ASTMD1238 |
1800C,
5Kg |
| Rebound Elasticity (Rb) |
60.2% |
ASTMD1054 |
Room Temperature |
| Specific Gravity |
0.89 |
ASTMD792 |
|
|
Molding Conditions:
- Drying: 600C, 2 Hours;
- Barrel Temperature:
- Rear Zone (Feeding): 1400C;
- Middle Zone: 1600C;
- Front Zone: 1800C;
- Nozzle Zone: 1800C.
- Mold Temperature: 30~400C;
- Injection Pressure: 30~60Bar;
- Injection Speed: Middle to
Fast.
|
|
|
