Plastic Closure Slitting MachineH.S.Code: 8477800000
|
|

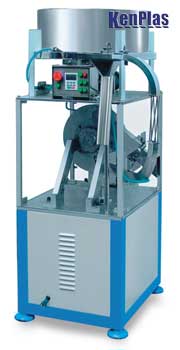

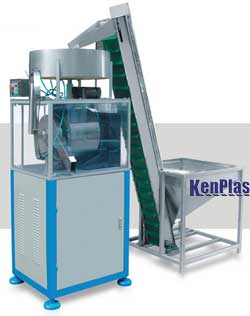

Model QK-15/QK-2002 closure slitting machine can perform closure sorting, feeding, slitting, releasing to
make the security ring of plastic closure automatically.
|
 |
|
Technical Specification |
|
|
 |
 |
|
|
Model |
|
Running Video: |
 (10.0MB) |
|
|
|
Cap Diameter: |
25~60mm |
25~60mm |
25~38mm |
|
Cap Height: |
15~25mm |
15~25mm |
15~30mm |
|
Header Number: |
2 |
6 |
2 |
|
Output (for dia.28mm): |
15,000 pcs/hour |
40,000 pcs/hour |
15,000pcs/hour |
|
Operator Required: |
3
sets/person |
|
|
|
Rated Power: |
0.6
Kw (1 phase ) |
4
Kw (1 phase) |
2 Kw (3-phase) |
|
Power Consumption: |
0.5 Kw |
2
Kw |
1.5 Kw |
|
Air Consumption: |
3-6Bar, 0.6m3/min |
3-6Bar, 0.6m3/min |
3-6Bar, 0.8m3/min |
|
Machine Dimension: |
90x75x176 cm |
|
145x65x150 cm |
|
Machine Weight: |
350 kgs |
|
450 kgs |
|
FAQ
- Can one machine slit all kinds of caps?
Sorry, no. Generally speaking:
For cap with dia.28~30mm neck, one machine needed;
For cap with dia.38~46mm neck, another machine is needed;
For cap with neck diameter <=24mm, another machine is needed.
Moreover, for one machine, the cap height is fixed.
- What should be replaced for different necks (if
applicable, e.g. 28mm & 30mm)?
Theoretically, sliding rail, knife support, cap seat, and front clamper
can be replaced to fit caps of another diameter. But actually it is not
so convenient. Thus we don't suggest one machine for caps of different
diameter.
- Powder generated by slitting machine may pollute the
caps? Should slitted caps be washed before capping?
Generally no.
Whatever there is powder generated or not, caps must be washed
before capping.
|
|
|
