 SCD = (1
Hopper Dryer) + (1
Dehumidifier) + (2
Autoloaders)
- SCD is the most suitable system for hygroscopic plastics
with high moisture absorption capacity, such as PET, PC, PA, PBT.

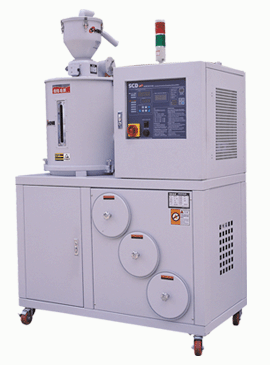

- 3 in 1 Design: SCD is combo with
compact space-saving design consists of one hopper dryer, one
dehumidifier and two autoloaders, easy to move.

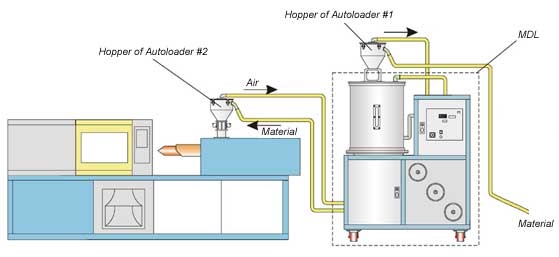

- Working Principle: One autoloader loads material into
hopper dryer, after drying and dehumidifying by dehumidifier
in hopper dryer, 2nd
autoloader loads dried material into machine.
- Control: Microprocessor, LED display for dehumidifying
temperature setting, 99-hour timer for auto start-up, fault
alarm function.
- Heat-insulated hopper dryer with down blow design to
reduce the heat loss at most.
- Close-loop Design to avoid moisture re-absorption.
- Pneumatic Butterfly Valve installed on hopper base to
avoid material block inside conveying hose.
- Pneumatic discharge gate for easy material change.
|
