Plastic Closure Folding Machine

H.S.Code: 8477800000

Closures from injection molding has teeth of security ring outwards, which can not be used directly. Thus we developped Model FD-2002 folding machine to push those teeth inwards.

Plastic Closure before Folding and after Folding
Technical Specification
Model FD-2002
Applicable Cap: Diameter: 25~60 mm
Height: 15~25mm
Header Number: 6
Output: 35,000 pcs/hour for common PCO/BPF/30-25 closure (dia.28~30mm);
30,000pcs/hour for dia.38mm closure;
Air Consumption: 4 Bar, 0.6m3/min.
Installed Power: 4.0 Kw
Machine Dimension: 120x50x120 cm
Machine Weight: 160 Kgs

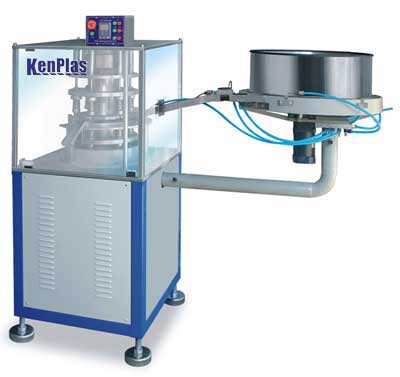

Plastic Closure Folding Machine model FD-2002 in RunningFolding Machine in Running (Size 611Kb, Duration 0'15")

Folding Machine DS-2002
FAQ
  • Can one machine fold caps of different diameter?
    No, one machine for one cap only, due to different main rotation disc.
