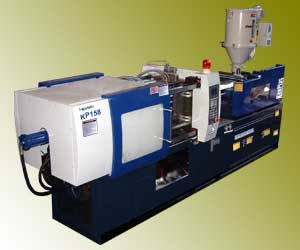

Plastic Injection Molding Machine HSJ Series

i-Master HSJ series plastic injection molding machine can deal with general purpose thermoplastics such as PolyEthylene(PE), PolyProplene(PP), PolyVinyl Chloride(PVC), PolyStyrene(PS), Nylon, PolyCarbonate(PC), Acrylonitrile Butadiene Styrene Copolymer(ABS), etc.

Specially designed HSJ series PET injection molding machine meets the processing requirements of PET material at most.

• KPET8;
• KPET12;
• KPET16;
• KPET24;
• KPET32.

• HIPET-48;

• Robust box style mold platen by direct iron casting;
• Larger mold capacity (opening stroke, mold thickness and space between tie-bars);
• (Optional) Differential injection device and clamping unit (higher speed but lower pressure);
• Self-lubricating bushes used in guide rods and tie-bars for smooth running and eliminating the need of external lubrication of machine surfaces and plastic goods.

Safety Device

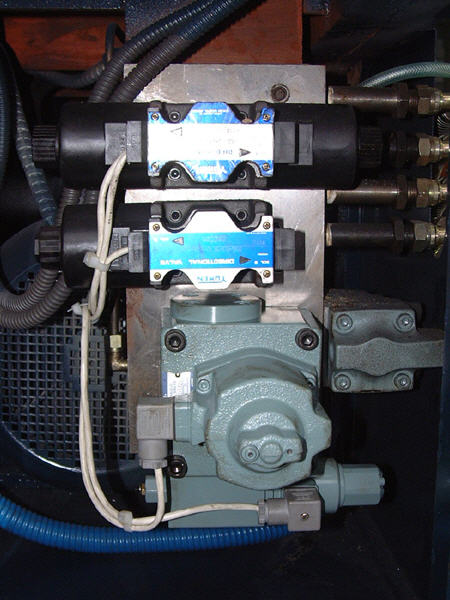

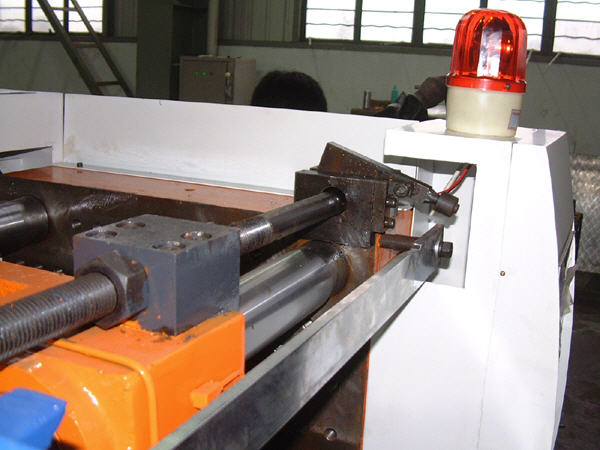

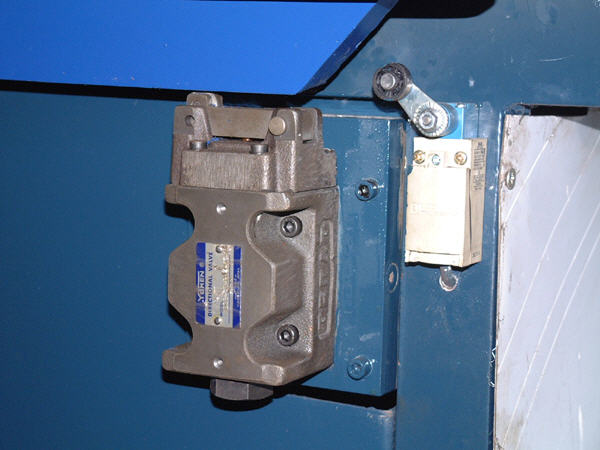

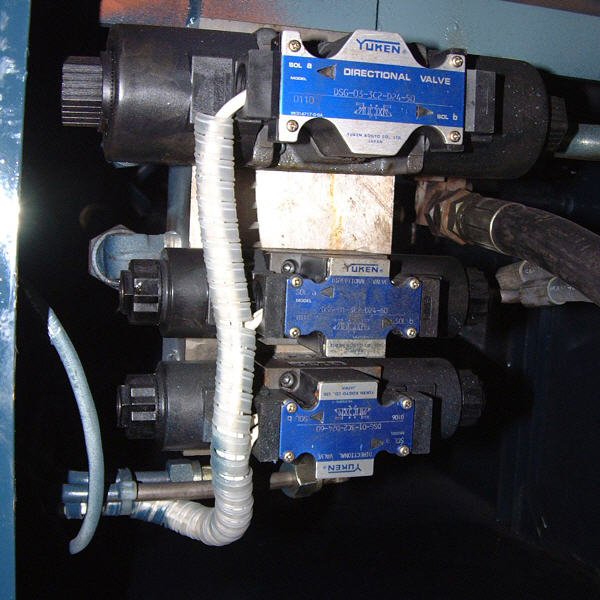

Hydraulic Safety (by Yuken/Taiwan Valve)	Mechanical Safety Device	Electrical Safety Device by Limit Switches (OMRON/Japan)

• AC Contactor -- Schneider/China;
• Limit Switch -- Panasonic NAIS;
• Proximity Switch -- DEPU/Germany;
• Band Heater -- Standard/HongKong.

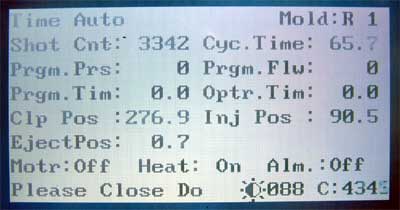

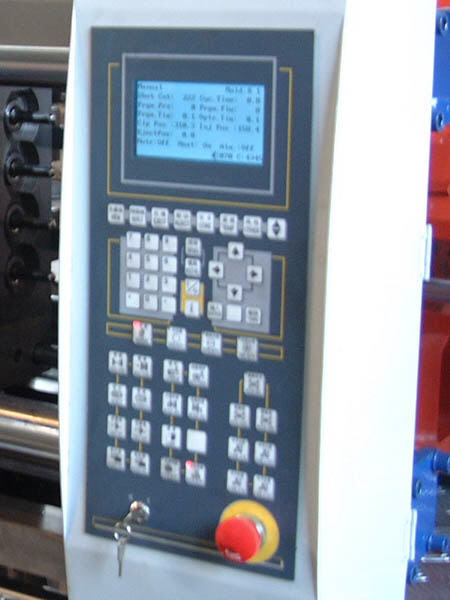

Panel of A63 Controller (by Techmation/Taiwan)	LCD Display (6")	Board & Wiring of A63 Controller (by Techmation/Taiwan)

• Sealing Ring, Composed Sealing Ring -- Japan.

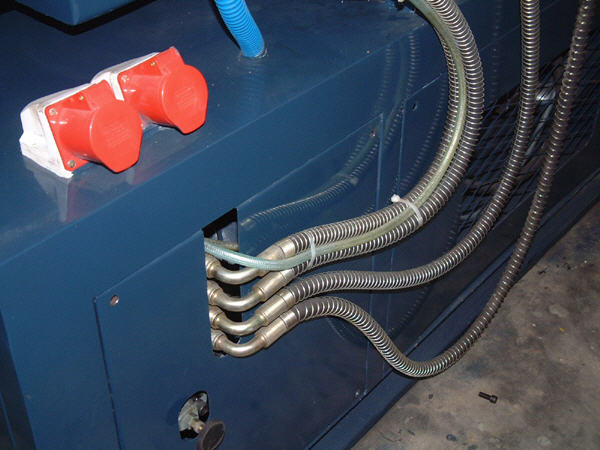

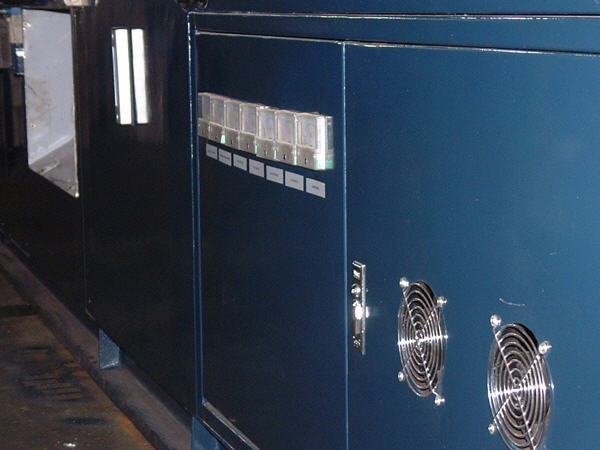

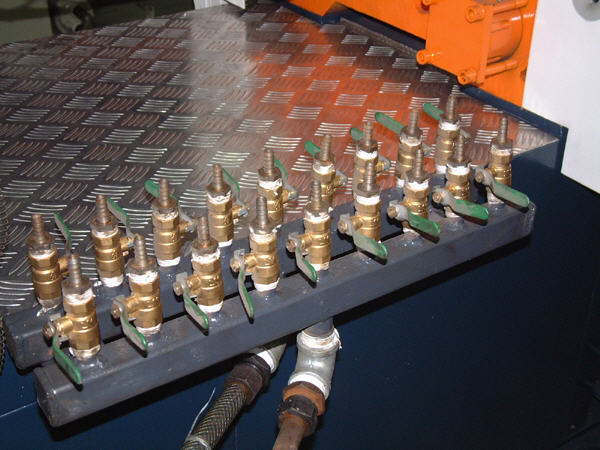

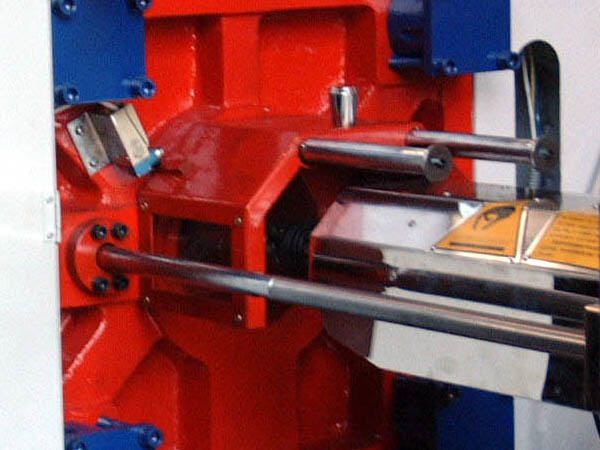

Hydraulic Hose (MANULI/China) Protected by Stainless Spring	Water Distributor for Easy Mold Mounting	Enhanced Cooling Blower for Electrical Cabinet to Stand High Temperature	Purge Guard to Protect Operator's Safety

Injection Unit

• Balanced double cylinder injection system with compact structure;
• Optional A, B, C screw & barrel for process of different material;

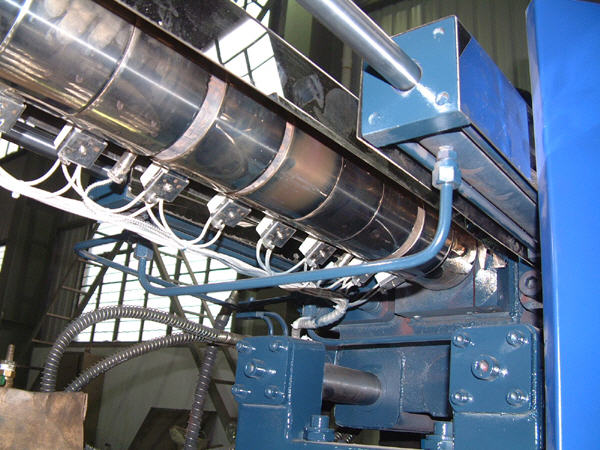

• Big L/D ratio and precision-boned heating barrel ensure increased plasticizing efficiency and ease of barrel flushing;
• Screw made by high precision CNC thread grinder to achieve strong plasticizing capacity and homogeneous mixing;
• Nitrided screw and heating barrel ensure optimum performance and lasting service life;
• Electro-hydraulic proportional valve features easy adjusted pressure and flow increase reliability and sensitivity;
• Easy adjustable multi-step pressure, speed of INJECT & HOLD-PRESSURE;

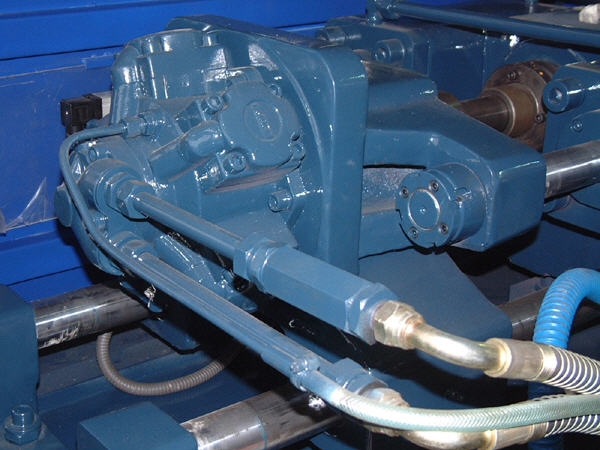

• Screw directly driven by a high torque hydraulic motor with 99-step speed and 140-step pressure, thus suitable for wide range of material;

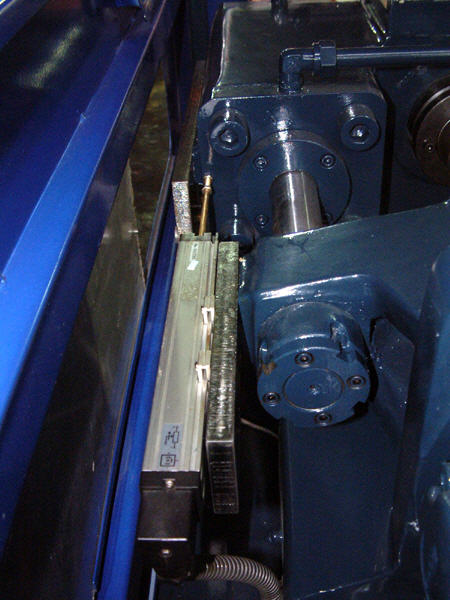

• Linear potentiometer for screw stroke control;
• P.I.D. temperature control;
• SUCK-BACK function;
• Pressure gauge indicates injection pressure;
• Screw and heating barrel made of high-quality 38CrMnAlA assure long service life.

Clamping Unit

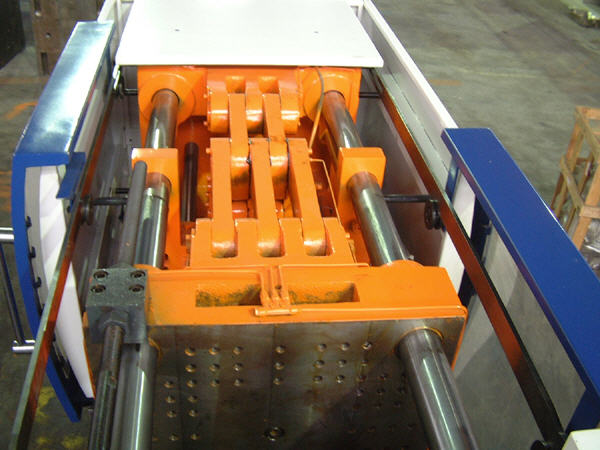

• International standard toggle mechanism;
• Platen and toggle in accuracy machined by CNC machine center;
• Large open stroke, efficient and reliable movement;
• High quality tie-bars using 40Cr steel;
• Automatic mold-height adjustment by hydraulic motor through a planetary gears system ensures fast and constant settings;

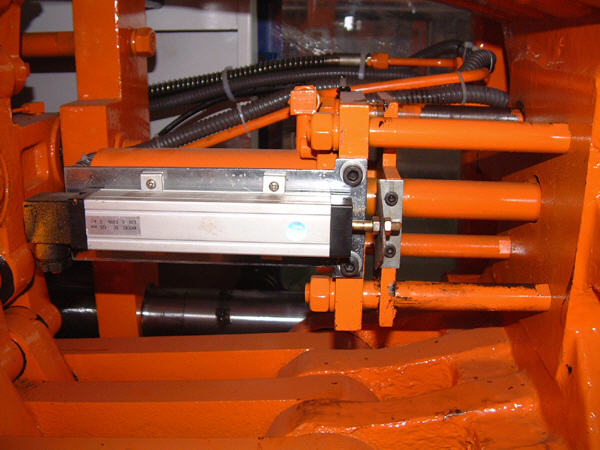

• Multi-eject function with adjustable pressure, speed, position and delay time;
• Low pressure MOLD-PROTECT;

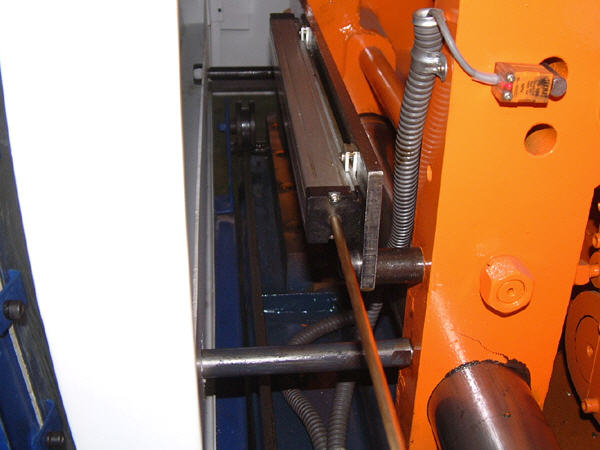

• Linear potentiometer for mold clamp position control;
• Three stages of MOLD-OPEN/CLOSE pressure and speed control;
• Whole-covered guide of clamping unit ensures the operator's safety.

Appearance & Foundation

• Level pads for foundation are easy for operators to move, install and level the machine;
• Oil filters, oil level and oil alarm system in the oil tank;
• Whole-covered safety guide is artistic and strong, movable for maintenance.

Hydraulic & Lubricating System

• Accuracy hydraulic proportional control system;

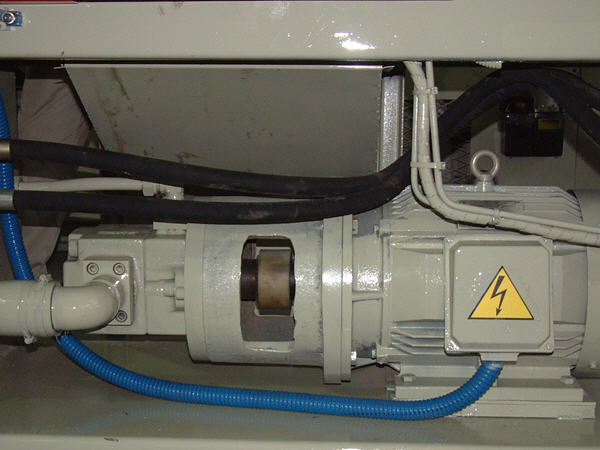

• Multi-pump system saves energy;
• Efficient and reliable hydraulic circuit;
• Oil temperature alarm device & emergency stop device;
• Core pulling;

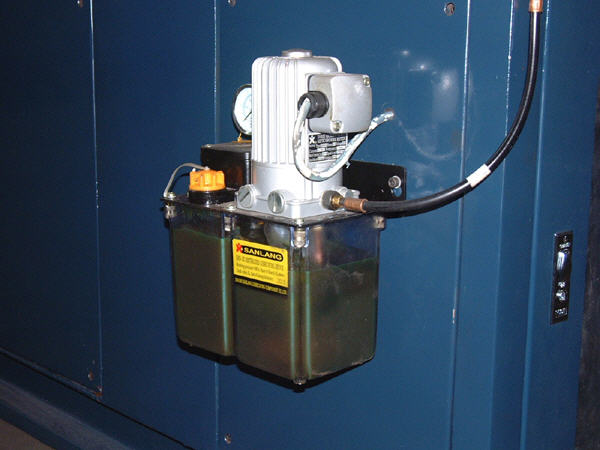

• Automatic lubricating system with leakage and low level alarm.

• A63 computer controller, which adopts the most advanced control technology and design, is reliable and precise microprocessor based controller especially for plastic injection molding machine;
• Basic circuit design includes standard photo coupling wiring circuit and high noise reduction characteristic;
• Dust-proof embrace operation key panel switch box;
• Suitable for various hydraulic proportional system;
• There are several engineering data stored in internal memory, which can be initially set by operator at machine setup time, ensure operation in optimum condition;
• Self-test function for maintenance;
• Manual, semi-auto, auto mode available.

Features of A63 Controller
