PET Injection Molding
MachineH.S.Code: 8477101090
|
|
Injection Machine Model |
Inj.
Unit |
Screw Diameter |
mm |
50 |
55 |
70 |
75 |
90 |
110 |
| Screw L/D Ratio |
|
23 |
20 |
23 |
25 |
23 |
23 |
| Shot Volume |
cm3 |
392 |
500 |
1192 |
1369 |
2410 |
4464 |
| Injection Pressure |
Mpa |
156 |
140.7 |
147 |
156 |
138 |
148 |
| Injection Rate(PS) |
g/s |
131 |
192 |
232 |
454 |
563 |
683 |
| Plasticizing Capacity(PS) |
g/s |
28 |
32.6 |
54 |
110 |
132 |
127 |
| Screw Speed |
rpm |
0-200 |
0-165 |
0-148 |
0-179 |
0-110 |
0-100 |
| Screw Stroke |
mm |
200 |
230 |
310 |
310 |
379 |
470 |
Clamp
Unit |
Clamping Force |
KN |
1500 |
1800 |
2500 |
3300 |
4000 |
4000 |
| Opening Stroke |
mm |
400 |
460 |
550 |
555 |
710 |
710 |
| Min. Mold Height |
mm |
175 |
175 |
250 |
350 |
250 |
250 |
| Max. Mold Height |
mm |
500 |
550 |
650 |
700 |
750 |
750 |
| Space between Tie-bars |
mm |
410x410 |
460x460 |
570x570 |
620x590 |
720x720 |
720x720 |
| Ejector Force |
KN |
33 |
60 |
68.9+43
(3-Cylinder) |
87+43
(3-Cylinder) |
110+65
(3-Cylinder) |
110+65
(3-Cylinder) |
| Ejector Stroke |
mm |
120 |
150 |
150 |
150 |
200 |
200 |
|
Others |
Pump Power |
kW |
15 |
18.5 |
30 |
37 |
45 |
45 |
| Heating Power |
kW |
12 |
13.47 |
23.72 |
20.35 |
30.5 |
45 |
| Oil Tank Volume |
L |
270 |
350 |
500 |
1070 |
925 |
1500 |
| Machine Weight |
Ton |
4.6 |
5.5 |
9.0 |
13.0 |
16.0 |
20.0 |
| Machine Dimension |
m |
4.8x1.15x1.75 |
5.3x1.2x1.8 |
6.6x1.5x2.0 |
7.86x1.9x2.1 |
8.6x1.9x2.2 |
9.2x2.15x2.4 |
|

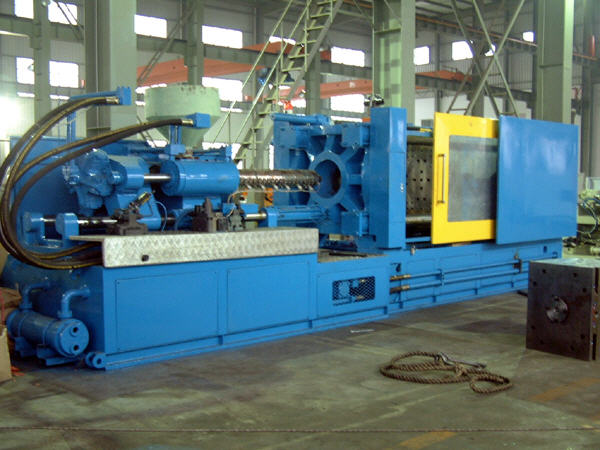

KPET32 before Delivery |
 PET Preform
Injection Molding
(Size: 1.45Mb, Duration 0'36") |
|
|
