NB5G Stretch Blow Molding MachineH.S.Code: 8477300000
|

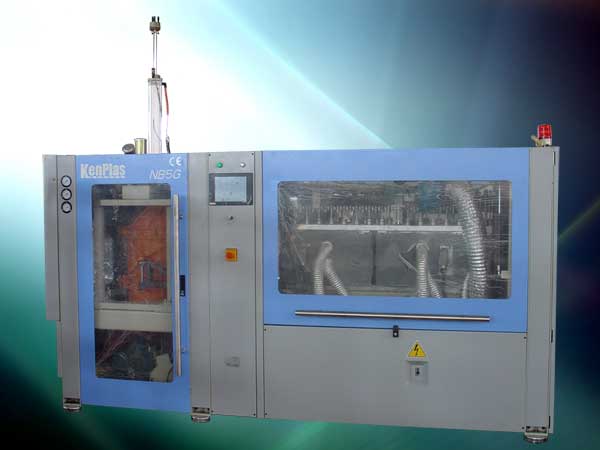

![PET Stretch Blow Molding Machine model NB5G](NB5G/nb5g.jpg) |
Running Video of NB5G
(Size: 2.33Mb, Duration 1'24") |
Typical Parts
- Pneumatic related (Low Pressure),
FESTO/Germany;
- Pneumatic related (High Pressure),
FESTO/Germany +
SMC/Japan;
- Controller (with Touch LCD), Inverter,
Mitsubishi/Japan;
- Contactor, Relay, Switch, Schneider/Germany;
|
Typical Feature
- Circumstance Independent
NB5G runs stably, whether voltage is 200V or 240V, or
whether room temperature is 00C
or 400C.
- Easy Operation
Minimum parameter settings (through touch LCD), normally only temperature settings
should be regulated, no need to play with time settings;
Multi-language interfaces;
- Reliability
Completely new-concept design, more mechanical & synchronized
design to reduce fault to minimum level.
- Energy-saving
Air recycling unit to save compressed air 20~25% (for 5 Gallon);
Reduced heating power;
Driving is mostly done by motor directly, instead of compressed
air.
- Higher Output
200% more efficient than traditional one.
- Fast Mold Changeover
Adopts Aluminum mold, lighter to be installed or unloaded;
10 molding data memories to make mold changeover quicker.
|
Specification |
Model |
General
|
Heater Type |
Infrared |
Capacity |
400BPH: 300g
Non-returnable 19L;
250BPH: 700g Returnable 19L;
450BPH: 250g 12L;
550BPH: 180g 10L
600BPH: 150g 8L; |
Bottle Vol. |
8 ~
20 Litre |
Cavity |
1 Cavity |
Bottle Diameter |
<=290 mm |
Outer Neck Diameter |
45~55 mm
(*1) |
Bottle Height |
<=530 mm |
Cooling Water |
Water Pressure |
3~5 Bar |
Water Flow |
5000L/h |
Temperature |
6-10
0C |
Chiller Capacity |
18000 Kcal/h |
Air |
Driving Air |
0.0 m3/min
(when recycle used) |
Blowing Air |
26~30Bar, <=3.0 m3/min.
(*2) |
Power |
Total Power |
39.7 Kw |
Heater Power |
32 Kw |
Machine |
Dimension |
see
below diagram |
Weight |
3300
kgs |
Interface |
Air Inlet |
G3/4" |
Water Inlet |
G3/4" |
Delivery Time |
75 Days |
Payment Term |
30% T/T advance as
deposit, balance 70% by L/C at sight. |
(*1)
-- different necks one same machine needs extra charge on parts to
fit necks.
(*2) --
depending on bottle size and operating condition. Rated output of air
compressor should be at least 50% higher than this value. |

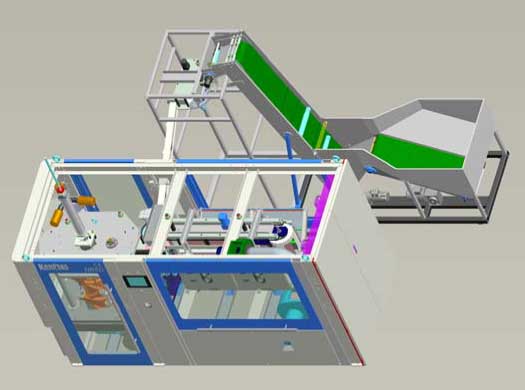

Overview of NB5G
![Overview of NB5G](NB5G/nb5g-overview.jpg)
|

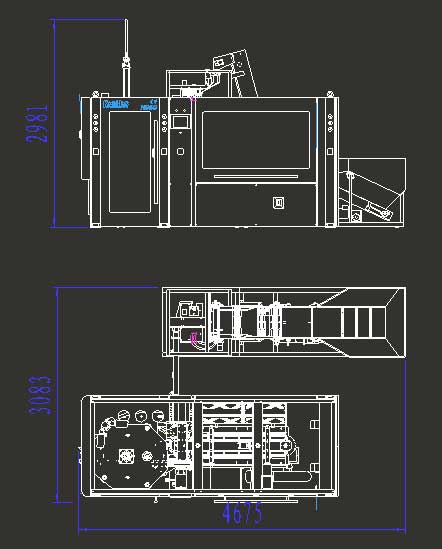

Layout of NB5G
![Layout of NB5G](NB5G/nb5g-layout.jpg)
|
Referece Bottles
|
|
